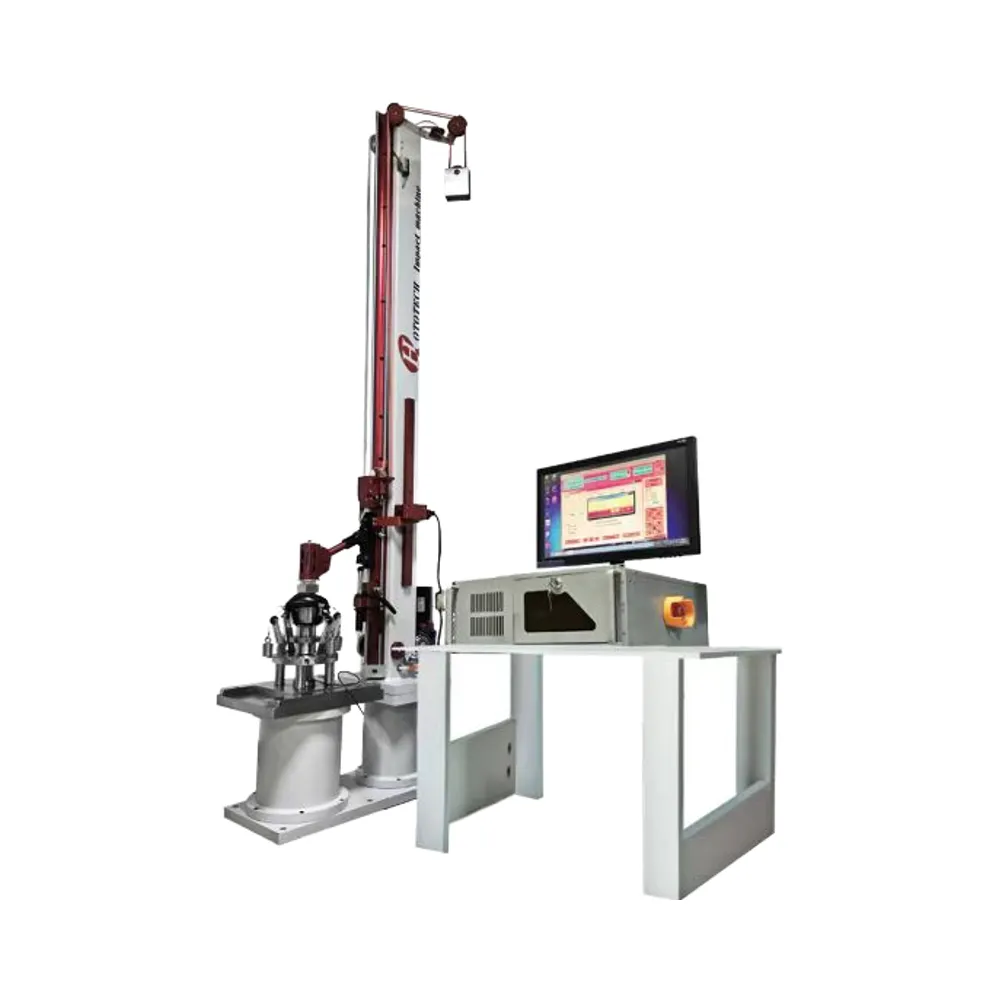

EN14120 Knee Pad Impact Resistant Tester
HT-2055
minimum order
1 set
Quantity:
- Type: Knee Pad Impact Resistant Tester
- brand name:HOTOTECH
- place of origin:Hubei, China
- Accuracy:3%
- Application:Auto Testing, Strength Testing, Textile Testing, Leather Testing, Impact Testing, Bending Testing, Laboratory Testing, Drop Testing, Lab Testing
- customized support:OEM, ODM, OBM
- power:1KW
- Protection Class:IP65
- Voltage:220 V
- warranty:1 Year
Applied Code
Suitable for EN14120 standard requirements.
Technical Parameter
Overall height: about 3m
Base width: 31 cm
Hammer Weight: 5±0.05kg;
Base width: 31 cm
Hammer Weight: 5±0.05kg;
Impact surface: radius 50±1mm; Impact energy: 123±3J
Impact anvils: 6 impact anvils are provided.
Force sensor; Range: 50kN; accuracy: 0.1kN; sampling frequency: 10kHz
Control method：The dedicated upper computer control software controls the test action.
Result displaying：Automatically evaluate the test results Pass or Fail.
Feature：You can customize the evaluation criteria and conditions according to user requirements.
Impact anvils: 6 impact anvils are provided.
Force sensor; Range: 50kN; accuracy: 0.1kN; sampling frequency: 10kHz
Control method：The dedicated upper computer control software controls the test action.
Result displaying：Automatically evaluate the test results Pass or Fail.
Feature：You can customize the evaluation criteria and conditions according to user requirements.
