Model No: HT-5005

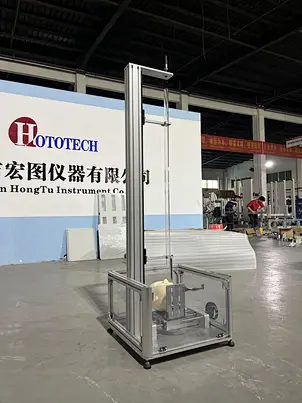

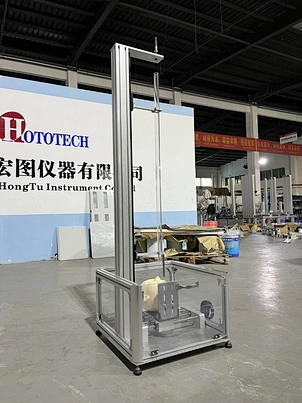

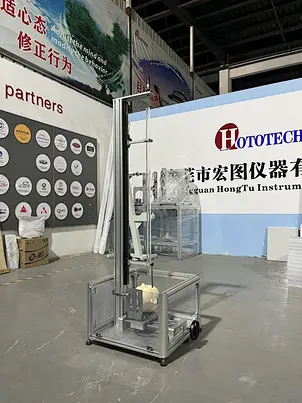

Ball Drop Impact Resistance Tester for Protective Goggles Face Shield
minimum order :
1 set
Quantity :
$999.00 - $999.00 / set
- Type: ball drop tester
- brand name:HOTOTECH
- place of origin:Hubei, China
- Accuracy:0.1%
- Application:Universal Testing, Impact Testing, Strength Testing, Drop Testing
- customized support:OEM, ODM, OBM, Software Reengineering
- power:100W
- Protection Class:IP65
- Voltage:220 V
- warranty:1 Year
Product Description
Ball Drop Tester for Safety Eyewear, Goggles & Face Shields Measures impact resistance of protective equipment according to ANSI Z87.1, EN 166, CSA Z94.3 standards. Features adjustable steel ball weight (e.g. 22g/44g/104g) and drop height (0.5m-1.5m). Ideal for quality control labs and manufacturers ensuring OSHA/CE compliance. Includes sample holder and calibration certificate.
Applications
Safety Glasses / Goggles / Face Shield / PPE Testing / Quality Control / Laboratory.
Applied Code
ANSI Z87.1 / EN 166 / CSA Z94.3 / AS/NZS 1337
Technical Parameter
| Headform | Mounted horizontally, face-up on ≥30 kg (66 lb) base |
| Static rigidity: ≤2 mm (0.08 in) deformation under 20 kg (44 lb) frontal force | |
| Projectile | Steel ball: 25.4 mm (1.0 in) / 68 g (2.4 oz) |
| Drop height: 127 cm (50 in) | |
| Guidance: Loose-fit tube ending 0.1 m (4 in) above impact point | |
| Face Shield Support | Curved support block: ~25 mm (1 in) width |
| Positioned at shield’s lower edge (not below chin) | |
| Impact location | Lens surface parallel to headform eyes |
