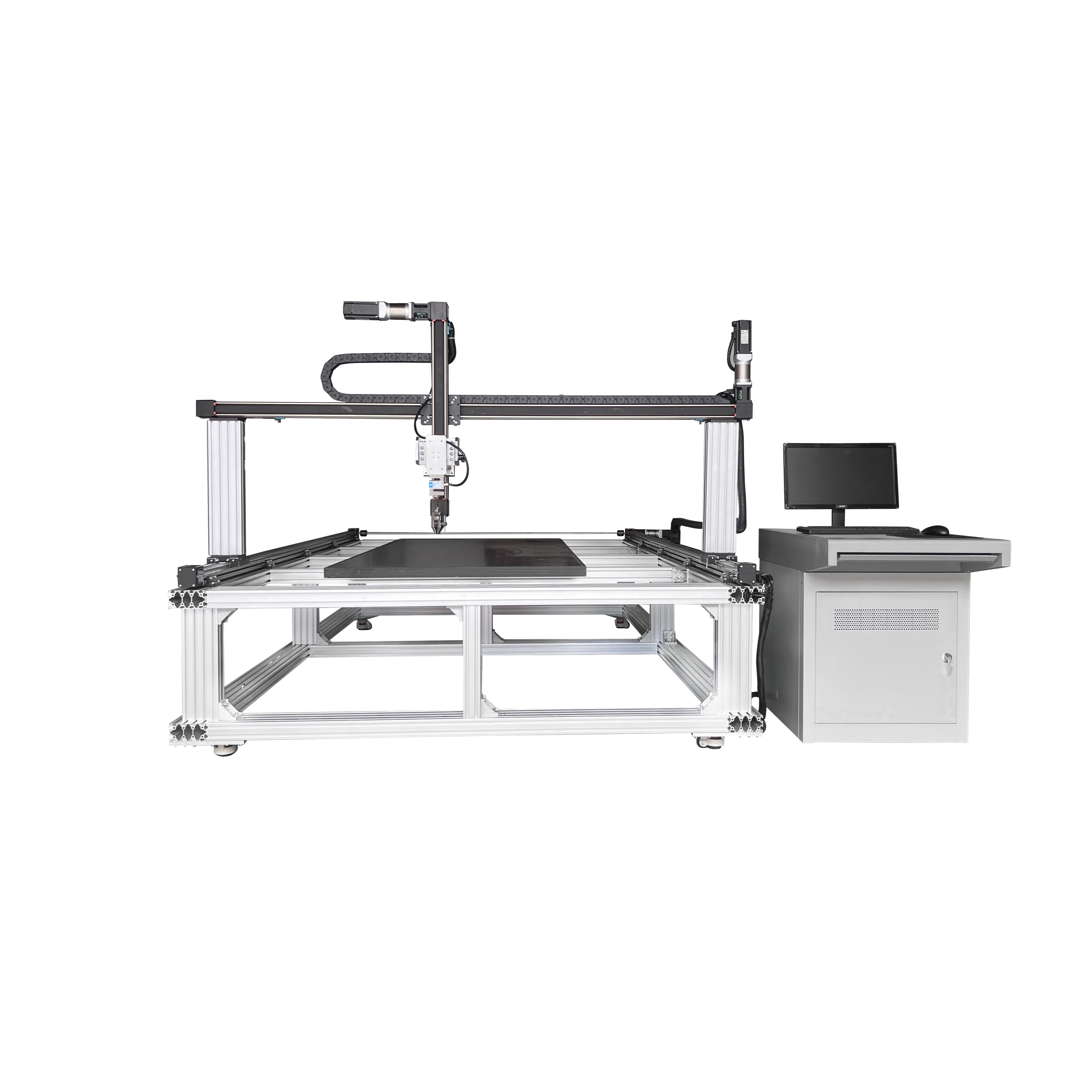

3D Peeling Testing Machine for Photovoltaic Modules: Principle and Application

220V Solar Panel Tester Peel Test Machine for PV Module EVA & Backplane 1-Year Warranty Lab Shear Testing Equipment

Introduction

1. Core Principle of 3D Peeling Testing

1.1 Beyond Traditional Peel Tests: Simulating Real-World Stress

• Multi-axis motion control: Precise control of displacement in X, Y, and Z axes to simulate arbitrary peeling paths and angles.
• Variable speed and force regulation: Adjustable test speeds (0.05–1000 mm/min) and load ranges to match diverse PV material properties.
• Real-time data acquisition: Simultaneous monitoring of force, displacement, and peeling energy to quantify interfacial failure behavior.

1.2 Technical Workflow

1. Sample Preparation: Cut PV module laminates into standardized specimens (e.g., 25×150 mm) and prepare peel arms to ensure consistent geometry.
2. Fixture Installation: Secure the specimen on a precision stage, with the peel arm clamped to ensure alignment with the test axis.
3. Test Execution: Initiate multi-axis peeling to simulate real-world delamination, recording force-displacement curves and energy dissipation data.
4. Data Analysis: Use proprietary software to calculate peel strength, critical fracture energy, and failure modes (e.g., adhesive failure, cohesive failure).

2. Key Features of Hongtu Instrument’s 3D Peeling Testing Machine

2.1 High Precision and Stability

• Load sensor accuracy: ±0.1% full scale, ensuring reliable measurement of micro-newton forces critical for thin film materials.
• Ball screw drive system: Minimizes friction and backlash, enabling smooth, repeatable multi-axis motion.
• Customizable fixtures: Accommodate various PV component samples (e.g., cells, backsheets, junction boxes) with quick-change tooling.

2.2 Compliance with International Standards

• IEC 61215: For PV module qualification testing.
• IEC 61730: For safety qualification, including peel tests of bonded joints.
• ISO 8510-1: For peel test methods, supporting 90°/180° configurations and 3D extended tests.

2.3 Intelligent Software System

• Real-time monitoring: Live display of force, displacement, and peeling trajectory; auto-save of raw data for traceability.
• Automated report generation: Outputs PDF/Excel reports with test parameters, curves, and failure analysis to streamline QC documentation.
• Data export compatibility: Integrates with third-party analysis tools for advanced fracture mechanics research.

2.4 Durability and Safety

• Rigid metal frame: Ensures structural stability during high-load tests, reducing vibration interference.
• Emergency stop function: Instantly halts operation to protect equipment and operators in case of anomalies.
• Low energy consumption: Optimized motor design balances performance and energy efficiency for long-term lab use.

3. Industrial Applications in the PV Industry

3.1 Material R&D: Optimizing Encapsulation Systems

• Screening of new encapsulants: Compare adhesion performance of EVA vs. POE under multi-axis stress to guide material selection.
• Process optimization: Determine optimal lamination temperatures and pressures to maximize interfacial strength.
• Aging simulation: Combine with thermal cycling or UV preconditioning to evaluate long-term adhesion retention.

3.2 Production QC: Ensuring Consistency

• In-line inspection: Rapidly test 5–10 samples per batch to identify non-conforming products, reducing rejection rates.
• Supplier validation: Verify adhesion consistency of raw materials (e.g., backsheets, 胶膜) from multiple suppliers.
• Troubleshooting: Diagnose delamination issues in finished modules by analyzing peel force curves and failure modes.

3.3 Third-Party Certification: Meeting Global Requirements

• Pass IEC 61215/61730 audits: Provide comprehensive, standardized test reports to accelerate certification.
• Address export market demands: Meet strict quality requirements for European, North American, and Asian markets.

3.4 Academic Research: Advancing PV Technology

• Delamination mechanisms: Investigate how moisture, temperature, and mechanical load accelerate interfacial failure.
• Novel material testing: Evaluate emerging PV technologies (e.g., perovskite-silicon tandem modules) for interface reliability.

4. Case Study: Enhancing PV Module Durability

1. Problem identification: Multi-axis peel tests revealed weak adhesion between EVA and polyamide (PA) backsheets under thermal cycling.
2. Solution optimization: The R&D team adjusted the encapsulant formula and lamination process, increasing peel strength by 35% under 3D stress conditions.
3. Field validation: Modified modules passed 2,000-hour thermal cycling tests with no delamination, reducing warranty claims by 40%.

5. Future Trends and Conclusion

5.1 Technological Evolution

• AI integration: Future systems will use AI to predict delamination risk based on peel data, enabling predictive maintenance.
• Environmental simulation: Combined with temperature/humidity chambers, to test adhesion under combined environmental and mechanical stress.
• Miniaturization: Compact models for R&D labs and portable QC units for on-site production testing.

5.2 Conclusion
