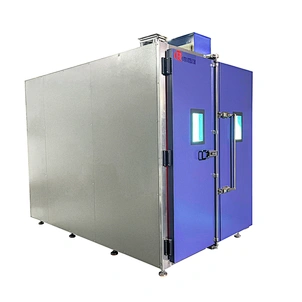

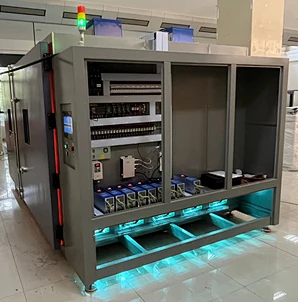

Solar panels PV (Photovoltaic) Modules UV preconditioning test chamber

Solar panels PV (Photovoltaic) Modules UV preconditioning test chamber

HTPV-15
The Solar panels PV (Photovoltaic) Modules UV preconditioning test chamber are designed for solar panels (PV modules). They simulate the destructive effects of long-term outdoor sunlight exposure on solar panels and evaluate the UV aging resistance of the components.
minimum order
1 set
Quantity:
Contact Now
add to cart

The Solar panels UV preconditioning test chamber are designed for solar panels (PV modules). They simulate the destructive effects of long-term outdoor sunlight exposure on solar panels and evaluate the UV aging resistance of the components.

Basic information
  • Brand name: HOTOTECH
  • Type: PV module testing equipment
  • place of origin:Hubei, China
  • Application:Lab Testing
  • customized support:OEM
  • power:35KW
  • Voltage:380 V
  • warranty:1 Year
  • Product Name: PV module UV Preconditioning testing chamber
  • Testing standard:IEC61215 IEC61730
  • The UV lamp:Germany import
  • The UV chamber temperature range:23-80
  • Irradaince strength:150~250W/m2
  • The UVA wavelength:320-385nm
  • The UVB wavelength:280~320nm
  • The irradiance uniformity:Better than +/-15%
  • The lamp life:3000 hours
  • The electric:380V
PV module UV Preconditioning Testing Chamber for IEC61215 IEC61730 Testing Standard Testing standard
The purpose Is to precondition the module with ultra-violet (UV) radiation before the thermal cycle / humidity freeze tests to indentify those materials and adhesive bonds that are susceptible to UV degradation.
The Parameter:
  • Data acquisition: Use the Professional UVA, UVB optical fiber probe makes data acquisition more accurate.
  • Data display: Industrial touch screen operate and real-time monitor display UVA, UVB, when arrived the set value, it will automatic stop.
  • Fan cooling temperature control system: temperature sensor precise control testing sample surface temperature during the testing procedure, and real time display on the touch screen, promise the testing temperature stable at 60℃± 5℃.
  • Temperature range: 20℃-80℃
  • Control system: Industrial Touch Screen + PLC Programmable Controller for Automatic Control of Temperature, Irradiation and Test Time.
