Solar Panels PV (Photovoltaic) Modules Thermal Cycling Test Environment Chamber

Solar Panels PV (Photovoltaic) Modules Thermal Cycling Test Environment Chamber

HTPV-17
The IEC 61215 standard requires thermal cycling testing for solar panels. This testing uses temperature humidity test chamber equipment and humidity control chambers to determine the performance of solar panels PV (Photovoltaic) modules under repeated temperature changes.
minimum order
1 set
Quantity:
$999.00 - $9999.00 / set
Contact Now
add to cart

The IEC 61215 standard requires thermal cycling testing for solar panels. This testing uses temperature humidity test chamber equipment and humidity control chambers to determine the performance of solar panels under repeated temperature changes.

Basic information:
  • Brand name: HOTOTECH
  • place of origin: Hubei, China
  • Accuracy:1%
  • Application: Auto Testing, Laboratory Testing, Solar panel high temperature test
  • customized support: OEM, ODM, OBM, Software Reengineering
  • power: 500W
  • Protection Name: PV module climate test chamber
  • Voltage: 220 V
  • warranty: 1 Year
Description:

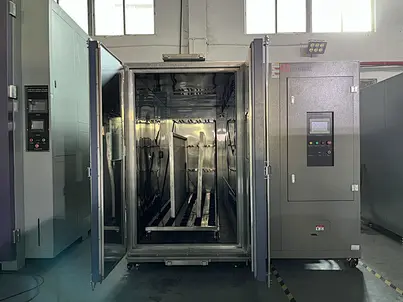

The PV module temperature and humidity test chamber simulates extreme environmental conditions of temperature fluctuations and humidity variations.

Specifications：
Inner chamber material: SUS # 304 high temperature resistant stainless steel plate
Outer chamber material: Antirust steel plate + baking paint treatment
Insulation Material：High density hard PU foaming and glass insulation cotton,
The chamber inner size：according to pv module size and quantity to decided
Refrigerant: use the newest HFC environmental protection refrigerant
Refrigerant valve: automatic switch regulating refrigerant valve
The Temperature range: - 50 —100℃,and the temperature fluctuation ≤±1℃,the deviation ≤±1℃ and the uniformity:≤±1℃;
Humidity range: 30 to 98%RH, the relative humidity deviation: ± 3%FS, deviation 85±2% RH; 90± 2%RH, Humidity fluctuation : ± 2%RH, humidity uniformity: ≤ 2%RH
Load Capacity: 1000kg;
Communicate interface: Ethernet_TCP/IP communicate interface and RS485
Maximal speed rate of temperature: 100℃/h ;
Testing cycle times: 200 (it’s can free set by customer )
