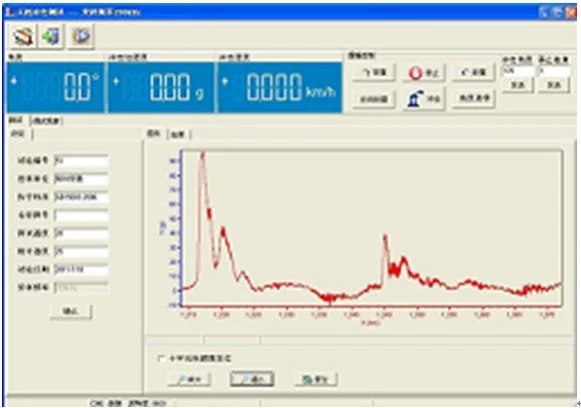

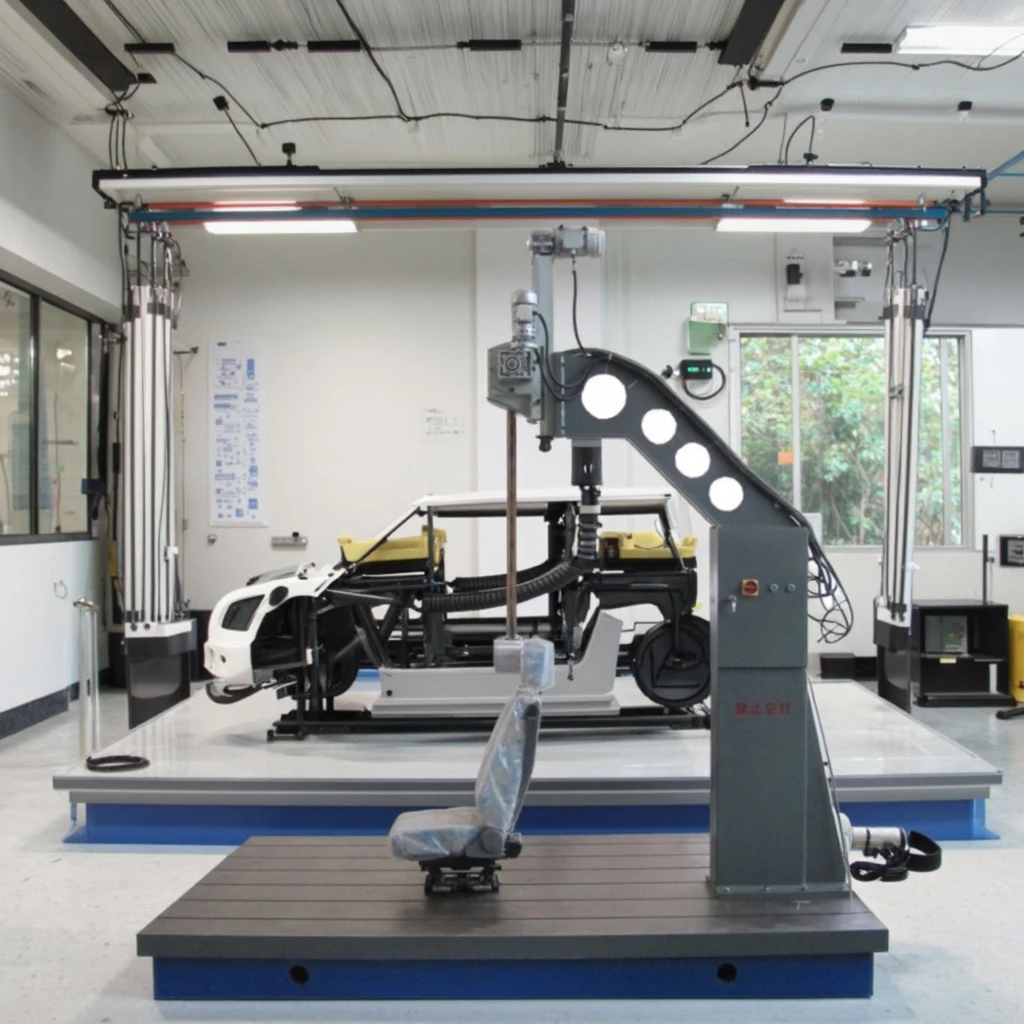

Product DescriptionThe automotive seat pendulum-type headrest impact strength testing machine is primarily used for testing the strength and impact resistance of seat headrests. This testing machine is suitable for the following scenarios: evaluation tests for seat headrest strength, new design, process changes, material changes, source verification, product quality sampling, etc. The software interface of this test uses virtual instrument technology in a Windows environment, with a user-friendly interface that is easy to operate. Technical Parameter Construction:the main engine, the control measurement system.Shock acceleration range:200g.Shock velocity:24.1 km/h.Velocity accuracy:±2.5% (or ±0.5 km/h)Sampling frequency:250kSP/sPendulum length:1250mm.Pendulum angle resolution:0.1 degreesAcceleration accuracy: ±5%Effective mass of the impact hammer head:6.8kg, accuracy ±0.05kg Main test bench size:(3000×2000×4100)mmComputer control panel size:(600×600×1500)mmEquipment power supply:Single-phase AC 220V, 50Hz, 1kW; Three-phase AC 380V, 50Hz, 3kW. Characteristics1, A pendulum impact test is used. 2, The computer interface uses virtual instrument panel technology, making operation convenient. 3,Test data can be reproduced, with data points highlighted for easy analysis. 4, Test data is stored in a database, making data retrieval convenient. 5, The pendulum can impact at (0~172) degrees. 6, It is protected by a safety net.7, Equipment operating environment, temperature: 15°~35°, humidity: 10%~80%8, Equipment footprint: 4500 X3000 X 4400 (mm). 9, Equipment installation:lifting, the customer provides a 3-ton crane (shovel) to cooperate with our equipment unloading and installation.Our Services
