This electric current tester is designed to test the reverse current overload current according to MST26 in the IEC61730. Power supply is applied to offer content current into the module.

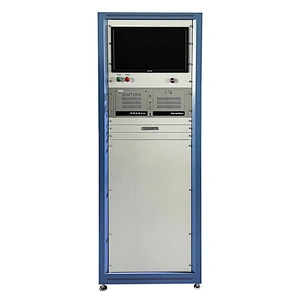

HTPV-27 Solar panels current continuty monitoring test equipment

HTPV-27
Solar Panels Current Continuity Monitoring Test Equipment is designed to test reverse current and overload current in accordance with MST 26 of IEC 61730. A power supply is applied to deliver constant current into the solar module.
Delivery
FOB
minimum order
1
Supply Ability
100 / Month
Country of Origin
china
Stock Time
30Day
Quantity:
Contact Now
add to cart

Solar Panels Current Continuity Monitoring Test Equipment is designed to test reverse current and overload current in accordance with MST 26 of IEC 61730. A power supply is applied to deliver constant current into the solar module.

1.Introduction

This equipment is designed to test the reverse current overload according to MST26 in the IEC61730.


2.Feature

  1. Power supply is applied to offer content current into the module;
  2. Current and duration are preset.
  3. Wooden panel and issue paper are applied to wrap the module;
  4. Touch screen controller is applied to control the power supply and monitor, record the current;
  5. Current curve could be displayed on the touch screen.
  6. Test data could be saved into the U-disk.

3.Components

Sr. No.ComponentQuantity
1Power supply1
2Control system1
3Wooden panel1
4Tissue paper50m2
5Table1
  1. Technical parameters

4.1 Power supply

  1. Voltage range: 0-100V;
  2. Resolution: 0.1V
  3. Accuracy: 1%;
  4. Current range: 0-60A;
  5. Resolution 0.1A
  6. Accuracy: 1%;
4.2 Wooden panel
  1. Thickness: 9mm;
  2. Thermal conductivity:≤0.5 W/(m⋅K)
  3. Size: 2500mm*1500mm;


4.3 Tissue paper

  1. Density: 12 g/m2 to 30 g/m2
  2. Color: White

4.4 Table

  1. Dimension(L*W*H): 2500mm*1500mm*750mm

5. Software reference
