Model No: HTPV-31

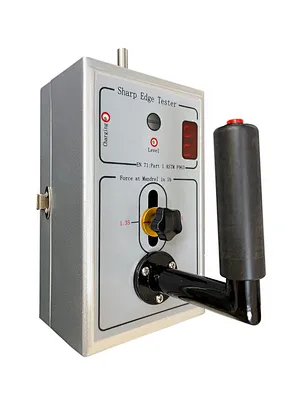

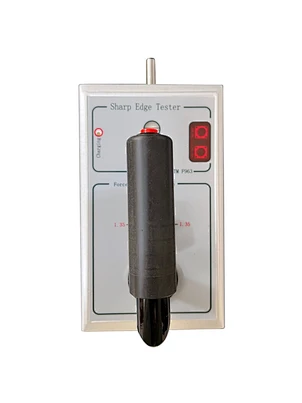

HTPV-31 solar panels photovoltaic pv modules sharp edge test equipment
The sharp edge tester, test edge tester, and test sharp tester are used for testing electrical products, including computers, daily household appliances, electronic equipment, solar panels, and other related equipment.
Delivery :
FOB
minimum order :
1
Supply Ability :
100 / Month
Stock Time :
30Day
Country of Origin :
China
Quantity :
The sharp edge tester, test edge tester, and test sharp tester are used for testing electrical products, including computers, daily household appliances, electronic equipment, solar panels, and other related equipment.
Standard：
UL-1439
UL-1439
Purpose:
STE-50 edger, high quality TC testing head is according to UL 1439 standard produce, It's used for to testing electric products, included the computer, daily household appliances, electronic equipment and other products. The position of touch whether exist hazards .
STE-50 edger, high quality TC testing head is according to UL 1439 standard produce, It's used for to testing electric products, included the computer, daily household appliances, electronic equipment and other products. The position of touch whether exist hazards .
Technical specifications:
Key specifications | Mandrel surface roughness | Ra≤0.40μm |
Rockwell hardness of mandrel surface | ＞40 | |
Mandrel diameter | 12.7±0.12mm | |
Mandrel rotation speed | 23±4mm/s | |
Mandrel pressure | 6.672±0.133 N | |
Mandrel rotation scope | 360° | |
Other | Adjustable angle with portable device | |
Working pressure and tension can be displayed | ||
The pressure applied to the mandrel remains constant and stable | ||
