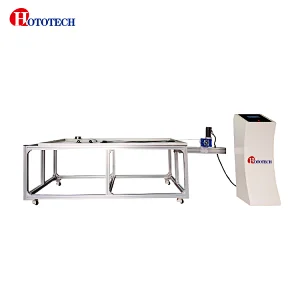

HTPV-02 Cut susceptibility test

Model NO.: HTPV-02
Delivery:: FOB
Minimum order quantity:: 1 set
Supply Ability:: 100 set / Month
Country of Origin:: ShenZhen YanTian
Stock Time:: 30 Days

Quantity:

Product Description
Basic Information

Technical specifications

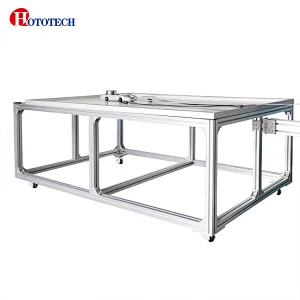

Test stand frame
1. The raw materials: Aluminum profile ( Firm and Antirust)
2. The testing standard dimension: satisfy 2015mm×996mm pv modules ( adjustable, suit for different pv modules dimension)
3.Included the Tracking pulley wheel

Testing Fixture
1.The raw material:Use adopt carbon steel blade

2.The steel blade thickness:0.64mm±0.05mm （It’s suffficiently rigid as not to be bend sideTechnical specifications
Test stand frame
1. The raw materials: Aluminum profile ( Firm and Antirust)
2. The testing standard dimension: satisfy 2015mm×996mm pv modules ( adjustable, suit for different pv modules dimension)
3.Included the Tracking pulley wheel

Testing Fixture
1.The raw material:Use adopt carbon steel blade

2.The steel blade thickness:0.64mm±0.05mm （It’s suffficiently rigid as not to be bend sideways during the test)

3.The top angle of steel blade :90±2° and with rounded with radius 0.115mm±0.025mm

The blade supply the force : 8.9N±0.5N
The testing fixture figure as below:

ways during the test)

3.The top angle of steel blade :90±2° and with rounded with radius 0.115mm±0.025mm

The blade supply the force : 8.9N±0.5NTesting parameter:

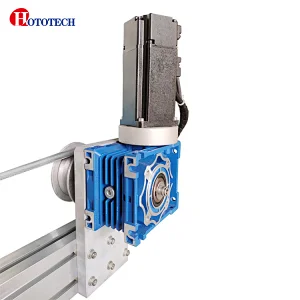

1.Use motor constant speed tracking , speed can set, tracking directing can adjustable
2.The test fixture speed:150±30mm/s
3.Control ways and display ways: Touch screen

Testing procedure
Position the PV Module horizontally with the test surface facing upward
The test fixture is to be placed on the surface for 1 min and then drawn across the surface of the pv module at a speed of 150mm/s±30mm/s, repeat the procedure five times in different directions considering the most critical points
Repeat step 1 and step 2 for other polymeric surface of the pv module if applicable
