PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine
PV Module cut Suscepitibility testing machine

PV Module cut Suscepitibility testing machine

Model NO.
PV-02
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Month
Country of Origin:
Dongguan China
Stock Time:
10 Days
Quantity:
Technical specifications:

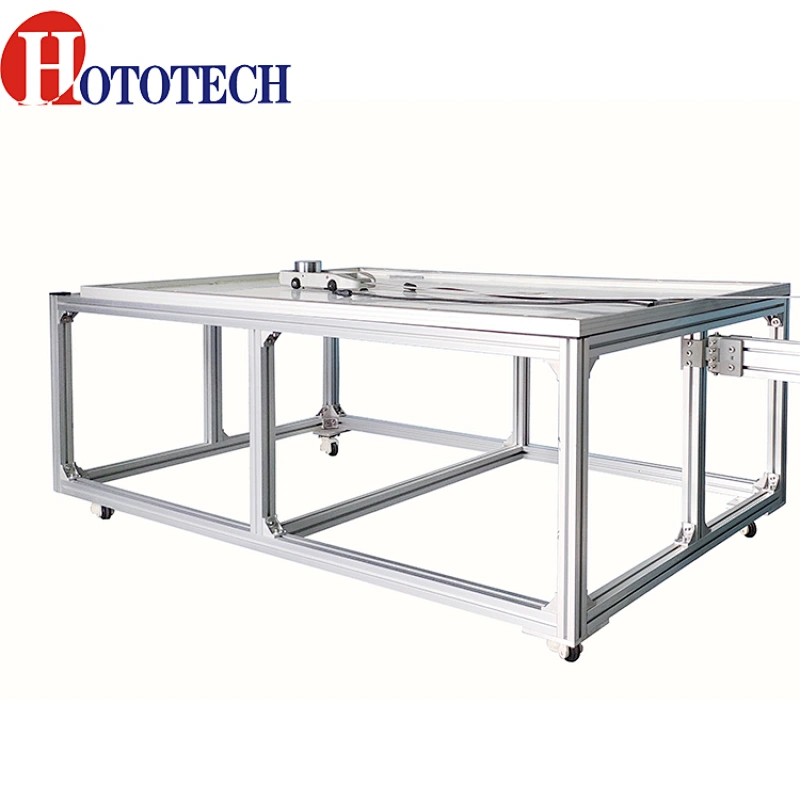

1.Aluminum alloy material operate table, size approx 1.4m x 0.65m;

2.Operate table include tracking pulley wheel,tracking head slide and moving convenience;

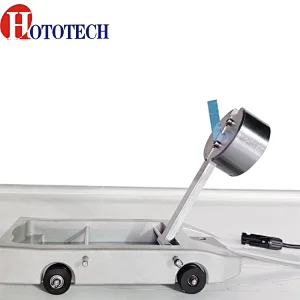

3.Test Fixture:
3.1 Adopt carbon steel blade
3.2 Promise 0.64mm±0.05mm thick requirment,and satisfy 0.115±0.025mm blade raduys requirement
3.3 Included the weights box in the saw bar
3.4 Distance and angle can adjust
3.5 According to IEC61730-2 standard requirment to adjustable weights,promise the test point suffer gravity 8.9N±0.5N

4.Adiot motor constant speed tracking speed continue and adjust.tracking directing can adjust;

5.Promise the test dixture to (150±30) mm/s speed pull the module.

Helmet inspection, applicable to standards: IEC61730-2& UL1703.
  • Place of Origin：China
  • Brand Name：HOTOTEST
  • Model Number：HTPV
  • Power：Electronic
Helmet inspection, applicable to standards: IEC61730-2, UL1703.
