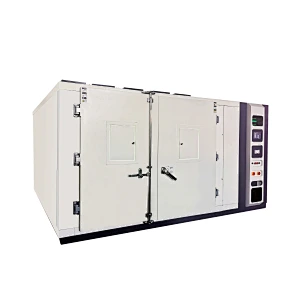

HTPV-18B BBA State Sun Simulator （Can Do Hot-spot Endurance Test, Stabilization)

Model NO.: HTPV-18B
Delivery:: FOB
Minimum order quantity:: 1
Supply Ability:: 100 / Month
Country of Origin:: CHINA
Stock Time:: 30 Days

Quantity:

Product Description
Basic Information

Purpose
This machine will offer a near natural light source under t he certain area, the light source class is
BBA, It’s main used for large area pv module aging testing

Standard
According to IEC 61215,IEC 61730 testing standard

1、Testing machine structure
1.1 The chamber of testing machine
1.1.1 The chamber of testing machine:foam board, It's made of completely cut off sunlight and keep warm foam board materials assembly together
1.1.2 Testing sample placed frame：40mm×40mm aluminum profile，Open structure is conducive to cold air circulation, rapid and constant temperature on the back of pv module
1.1.3 The inner chamber structure: two layer, light source layer and testing layer, the height of testing layer approx 1900mm
1.1.4 Testing layer temperature control: fan cooling system, automatic constant temperature system

1.2 Light source
1.2.1Light source: 4 pcs, The lamp brand :OSRAM
The light source is core components, meanwhile is consumables
1.2.2 Radiation intensity:500～1200W/m² adjustable, single light source system can real-time signal output to the collector
1.2.3 Radiation area:2015mm*996m , 4pcs light source , placed 1 pv module

Radiation intensity: 500~1200W/m2
Wave band:400~1100nm
Spectral Matching Degree:ClassB
Irradiation inhomogeneity:ClassB
Instabilities: Class A
Single light’s power:2500W
