1.Introduction

2.Feature

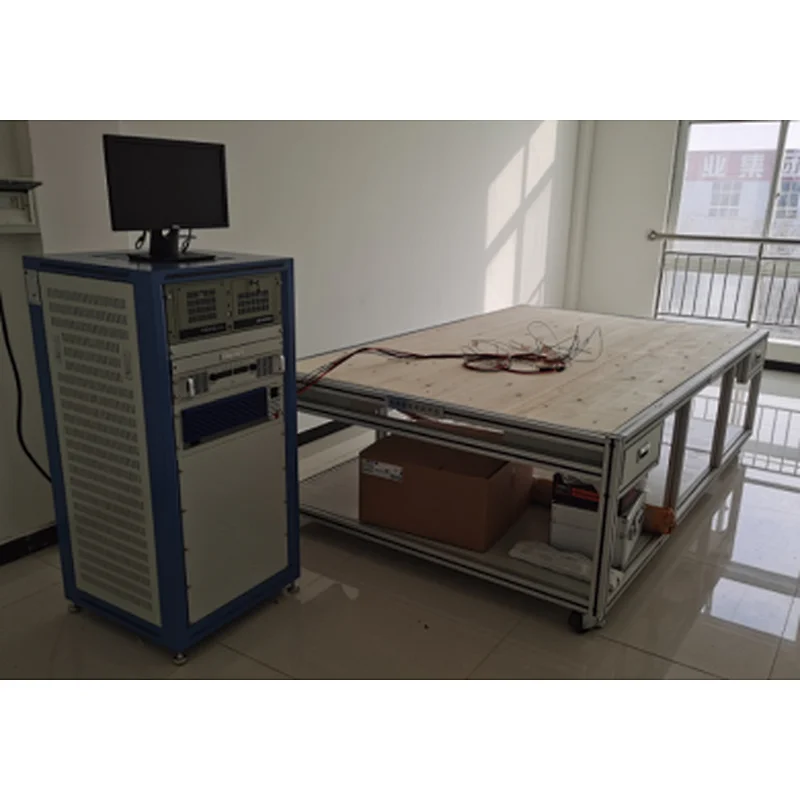

50. Power supply is applied to offer content current into the module;
50. Current and duration are preset.
50. Wooden panel and issue paper are applied to wrap the module;
50. Touch screen controller is applied to control the power supply and monitor, record the current;
50. Current curve could be displayed on the touch screen.
50. Test data could be saved into the U-disk.

3.Components

1. Technical parameters

4.1 Power supply

50. Voltage range: 0-100V;
50. Resolution: 0.1V
50. Accuracy: 1%;
50. Current range: 0-60A;
50. Resolution 0.1A
50. Accuracy: 1%;

50. Thickness: 9mm;
50. Thermal conductivity:≤0.5 W/(m⋅K)
50. Size: 2500mm*1500mm;

4.3 Tissue paper

50. Density: 12 g/m2 to 30 g/m2
50. Color: White

4.4 Table

50. Dimension(L*W*H): 2500mm*1500mm*750mm

5. Software reference
