HTPV-24 Impulse voltage tester
Print This Page

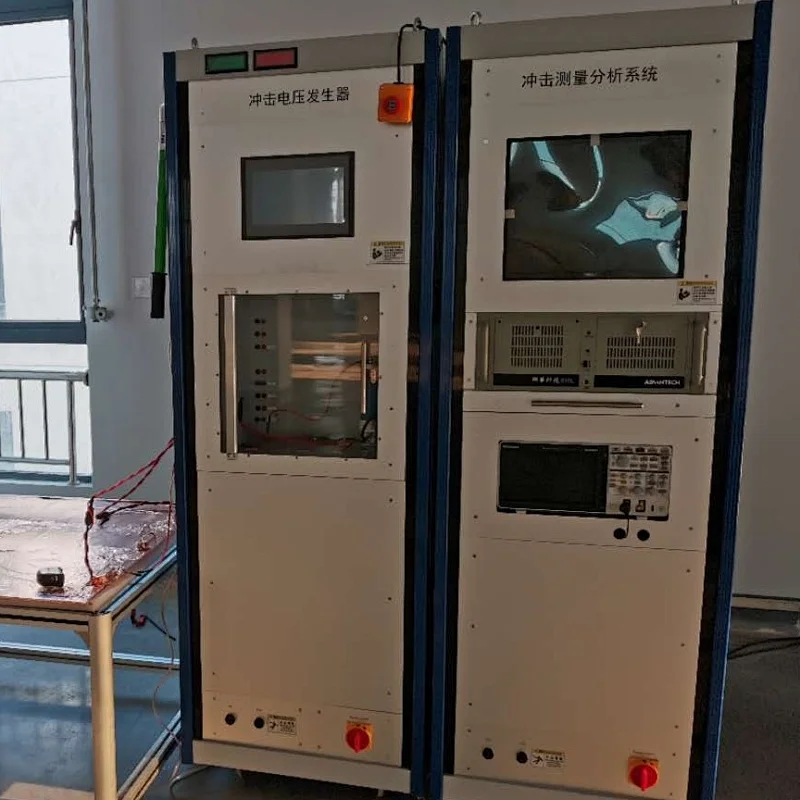

HTPV-24 Impulse voltage tester
Model NO.
HTPV-24 I
Delivery:
FOB
Minimum order quantity:
1
Supply Ability:
100 / Month
Country of Origin:
CHINA
Stock Time:
30 Days
Quantity:
Contact Now
Add To Inquiry Basket
Product Description
Basic Information
1.Introduction
This equipment is designed to apply impulse voltage on solar module according to MST14 in the IEC61215 standard.
2.Feature
Positive voltage and negative voltage could be altered;
Divide 6 gear to apply impulse voltage on different capacitive load;
Oscilloscope and voltage divider are applied to capture the curve of the impulse voltage;
IPC with window10 system is communicated with Oscilloscope to display the curve;
Rising time and falling time of impulse voltage is calculated by IPC;
Result could be reported in IPC.
3.Components
Sr. No
Component
Quantity
Brand
1
Impulse voltage power supply
1
ZEALWE
2
Oscilloscope
1
TEKTRONIX
3
Voltage divider
1
ZEALWE
4
Attenuation probe
1
TEKTRONIX
5
Test table
1
ZEALWE
4.Technical parameters
4.1 Impulse voltage generator
Voltage range:3KV to 25KV +/-3%;
Rising edge time:1.2 μs +/-30 %;
Falling edge half-life:50 μs +/-20 %;
Times: 1-999 times
Pulse repetition time: 20-9999s
Temperature scope of use: 5-40℃
Operating humidity range: ≤80%, and no condensation;
Power: 2KW
Dimension (Length*Width*Height): 1200*800*1800mm;
Weight: 200kg;
4.2 Oscilloscope
Display screen: 9 inches (color)
Number of channels: 2
Real-time sampling frequency: 1.0GSa/S
Bandwidth: 100MHz
Peak detection: 3.5ns
Maximum resolution: ≥5 μs /div @ 4 GSa/s
Memory depth: 20M
Input sensitivity: 2mV/div-5V/div
Maximum input voltage(1MΩ): 300V RMS Peak ≤±450V
Time base gear: 2 ns/div to 100s/div
Time base delay range: -15div-5000 ns
Time base precision: ≤ ±25 ppm
Pulse width range: 20ns to 8s
Video polarity: Positive polarity, negative polarity
Vertical range: ±5div
Isolation between channels: ≥100:1
4.3 Voltage divider
Input voltage: 1kV
~
40kV
Type: Resistance
Temperature coefficient: 100PPm/℃
Time responsibility: ≤100nS
Voltage divide ratio: 200:1
4.4 Attenuation probe
Attenuation ratio: 100:1
Input impedance: 200MΩ
Input capacitance: 3PF
Maximum input: 300V
Bandwidth: 100MHz l
Compensation capacitor: 3
~
25PF
4.5 Table
Dimension(L*W*H): 2500mm*1500mm*750mm
Place of Origin:China
Brand Name:HOTOTEST
Model Number:HTPV-24
Power:Electronic
