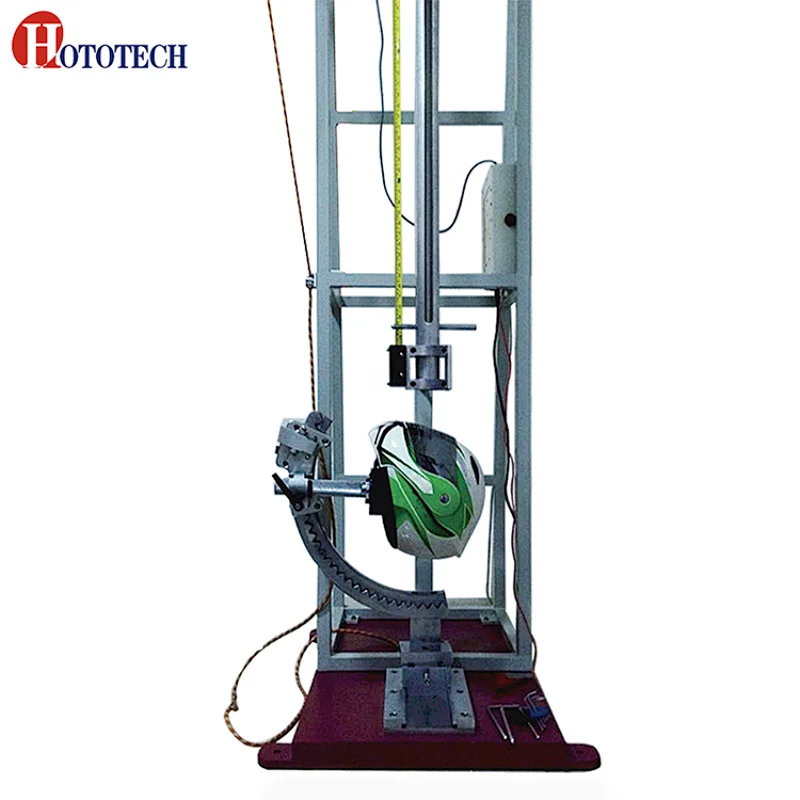

HT-6022 Helmet Penetration Testing Machine

Standard:
ECE R22.05,EN 1077,GB 811 standard requirement

Suit Range:
Use a certain weight striker from standard height fall free, used for helmet or goggles surface, to determine helmet or goggles's resistance penetration testing

Technical paramter :
1.lmpact height: 1000mm~3000mm 2.Mass of penetrator :3kg, striking point at an angle of 60° 3.Adjustable headform holder to facilitate operation 4.Guiding pipe made of hard aluminum 5.Manuel operation to raise up and lower the striker 6.Electro-magnet controlled release system
