Technical paramter :
1.Impact testing:
The mass of impactor:5kg+0.01kg , the head of striker is hemispherical ,
diameter:96mm
The mass of striker:3+ 0.05KG, cone angle:60, the diameter of cone tip:0.5mm,
the length of cone 40mm, hardness : HRC45
2.the height of impact :2500mm
3.Impact testing the maximum force sensor capacity:50000N
4.Frequency response range:5000HZ
5.HT-601 1-C special operate control software control testing active
6.HOTOTECH research and development control board
7.Rise。drop fixture use American THOMSON lining bearing
8.Real-time draw test curve
9.Software with data save, history information inquiry , data export / print etc
10.The report can save to Word, Excel, PDF, JPG etc format
11.Included a set of computer
- Standard:It's use to measurement helmet EPS density testing , foam density testing
- Place of Origin:China

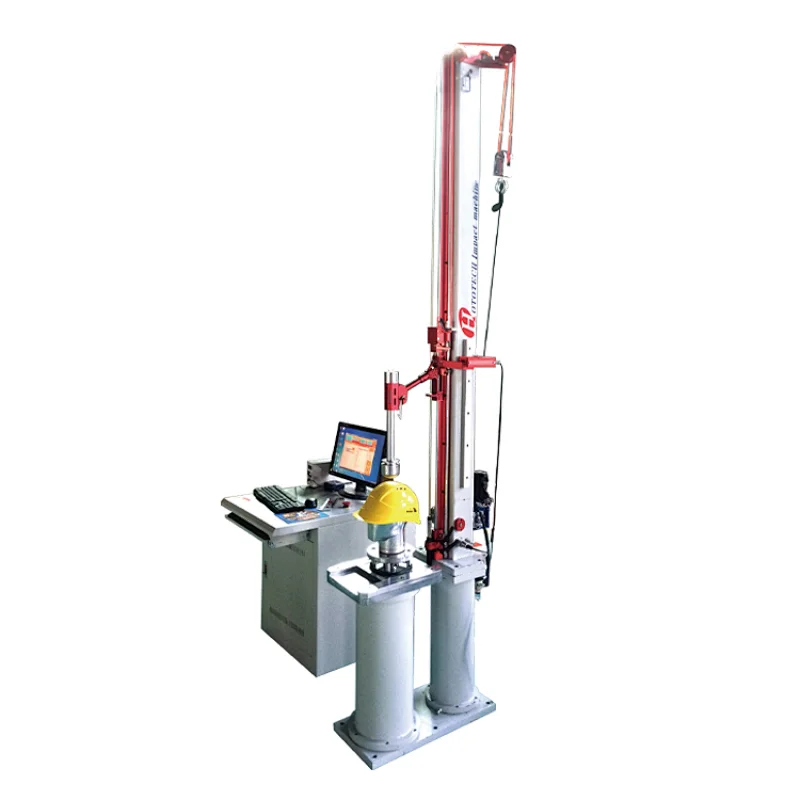

- Instrument processing customization:Helmet Testing Machine
- Brand Name:HOTOTEST
- Model Number:HT-6025
