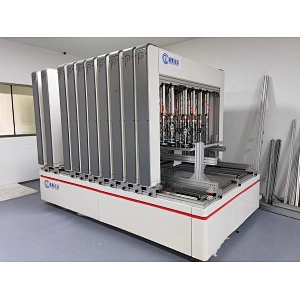

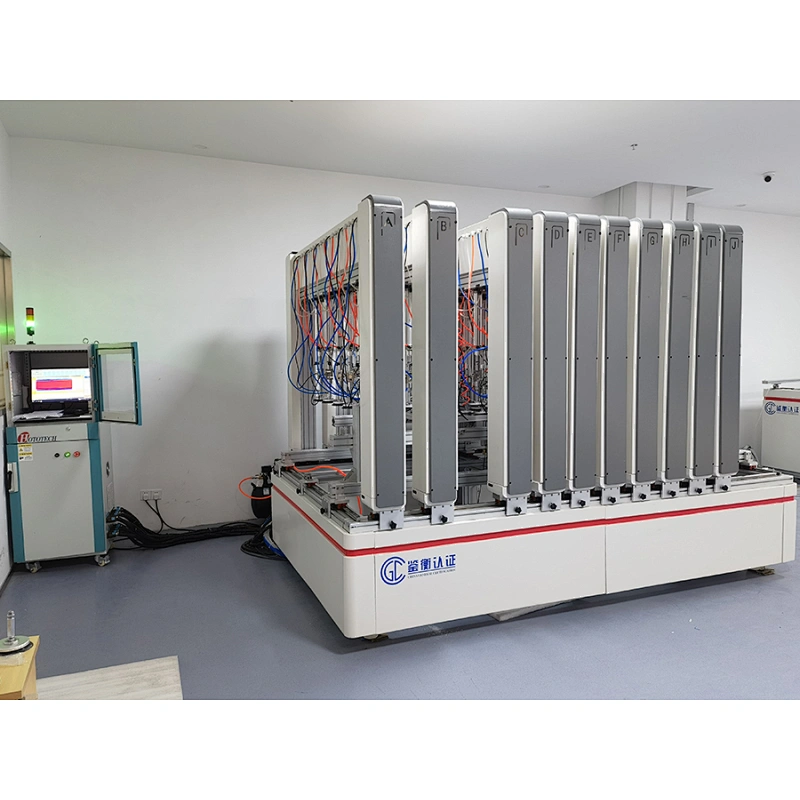

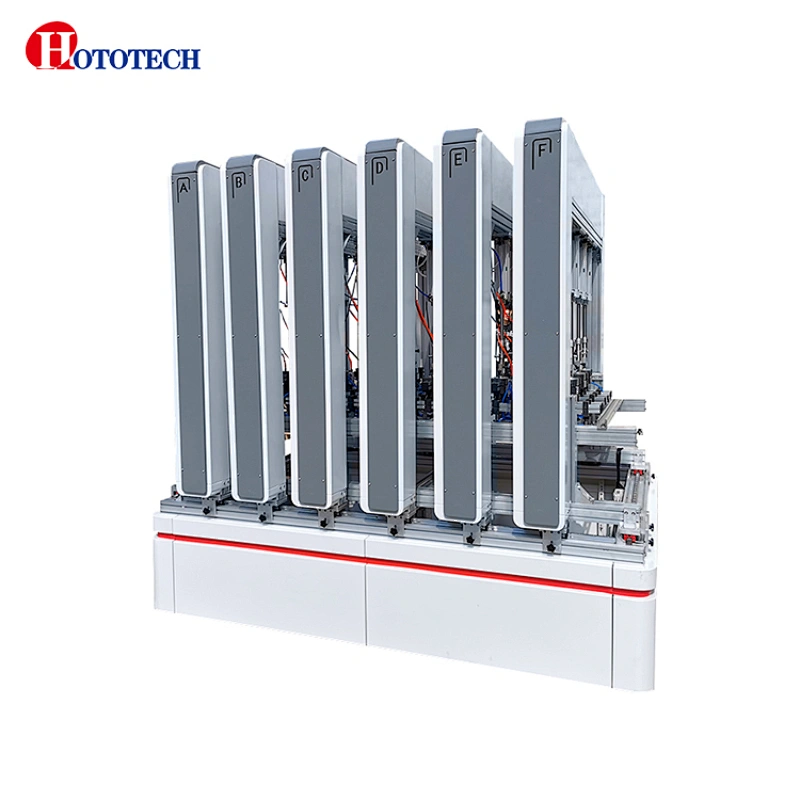

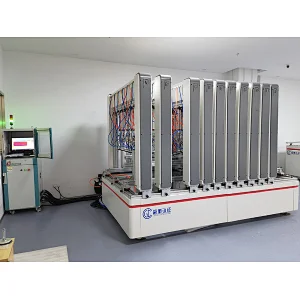

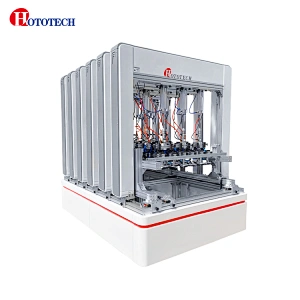

HT-08T Touch Screen Mechanical Load Test Photovoltaic Module Testing Machine

HT-08T Touch Screen Mechanical Load Test Photovoltaic Module Testing Machine

Model NO.: HT-08TT
Minimum order quantity:: 1

Quantity:

Product Description
Basic Information

Testing Machine’s advantage

1. Dynamic & static integration，It’s can satisfy the Dynamic load testing, and also satisfy the Static load testing
2.The Static load mode：The positive load can realize +8000 Pa (can adjustable)
The reverse load can realize -6000 Pa (can adjustable)
3.Dynamic load mode: Dynamic load:1000 Pa, 1000 times, the dynamic load frequency:7s±3s
4.Cycle times：Free Setting
5.Pressure control accurate：5%

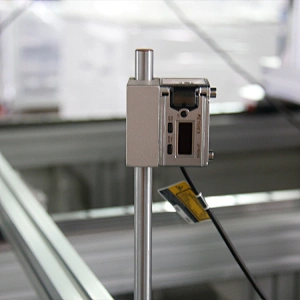

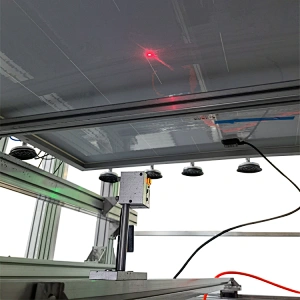

6.Real-time display the solar panel’s deformation, and drawing the force curve and pressure
Curve

7.During testing, real-time monitor the current & voltage of solar panel

8.When the deformation value more than setting value, the machine will automatic protection

and stop
9.When the current more than setting value, the machine will automatic protection and stop

The Mainly Feature

1、The Testing machine’s raw material: Aluminum profile structure (firm and Antirust)
2、Can satisfy 2015mm×996mm solar panel size, ( It’s can adjustable, and suit for different solar panel’s size testing)
3、Pneumatic and force value feedback ways: low friction force cylinder, tensile pressure
Sensor ( the accurate:0.1N)

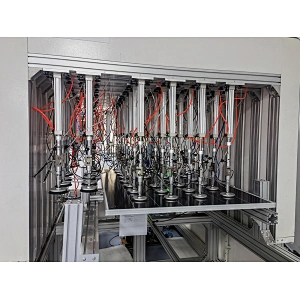

4、The cylinder : 10 PCS, the telescopic stroke:125mm

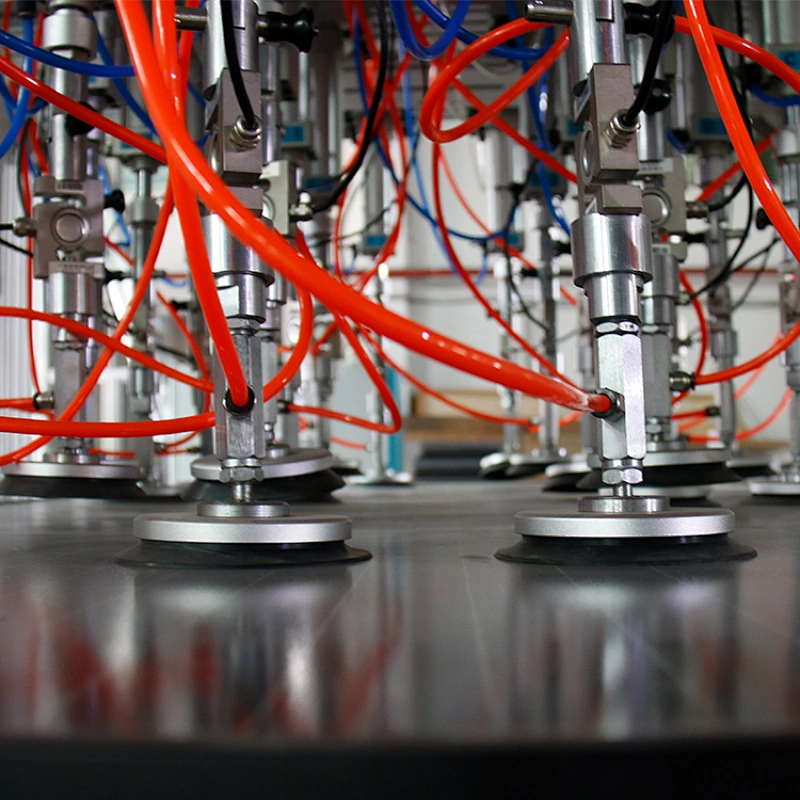

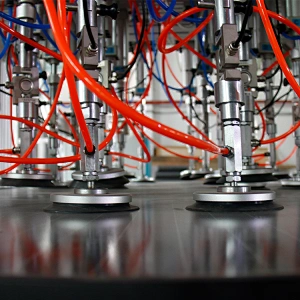

5、Sucker：40 PCS，The diameter:120mm ( 1 cylinder attached 4 suckers），Between the sucker
Center to sucker center distance ≤200mm , sucker with the rotation function, the rotation angle≥15
6、Control ways：Computer control
7、The testing machine can save the testing result and export to report

Software operate system feature：

Computer operate and control software by HOTOTECH researched and development,easy operate and test data stable
The software support Chinese and English , with the Switching function
Software real-time display pressure, deformation , testing time, cycle times and current electricity continuity
Software real-time drawing pressure and deformation curve
Software real-time display each cylinder’s force value and drawing the force value curve
Testing data real-time storage , query & print
The Testing data can export Word，Excel, PDF，JPG format
The software with the fault warning function

Mechanical Load Testing Touch Screen：8 cylinders 32 suction cups; 55 cylinders 55 suction cups; 66 cylinders 66 suction cups; 72 cylinders 72 suction cups; 84 cylinders 84 suction cups; 96 cylinders 96 suction cups; 104 cylinders 104 suction cups
