Technical specifications 1、Test tank:size: 2015×996×250mm(W*D*H),thickness 15mm, material:plexiglass 2、Temperature control :water constant temperature system researched and development by HOTOTECH , temperature:22±3℃ 3、Liquid resistivity:less than 3500Ω·cm
4、Insulation withstand voltage tester 4.1 Output current the maximum 0-5000V (adjustable) 4.2 Leakage current the maximum limit value:5mA 4.3 Output speed rate:500V/S 4.4 Insulation resistance test range:1MΩ~9999MΩ 4.5 Leakage current test range:0.001~5.000mA(DC)
5、Main configuration 5.1 Insulation withstand voltage tester 5.2 Water constant temperature system (control box) 5.3 Insulation water tank 5.4 conductivity meterTechnical specifications 1、Test tank:size:2015×996×250mm(W*D*H), thickness 15mm, material:plexiglass 2、Temperature control :water constant temperature system researched and development by HOTOTECH , temperature:22±3℃ 3、Liquid resistivity:less than 3500Ω·cm
6、Insulation withstand voltage tester 6.1 Output current the maximum 0-5000V (adjustable) 6.2 Leakage current the maximum limit value:5mA 6.3 Output speed rate:500V/S 6.4 Insulation resistance test range:1MΩ~9999MΩ 6.5 Leakage current test range:0.001~5.000mA(DC)
7、Main configuration 7.1 Insulation withstand voltage tester 7.2 Water constant temperature system (control box) 7.3 Insulation water tank 7.4 conductivity meter
Standard According to IEC61215 & IEC61730 testing standard requirement
Purpose to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion, a ground fault or a safety hazard

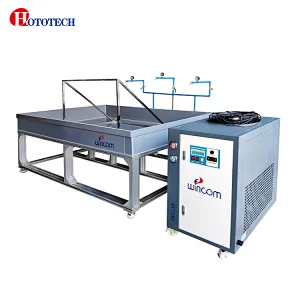

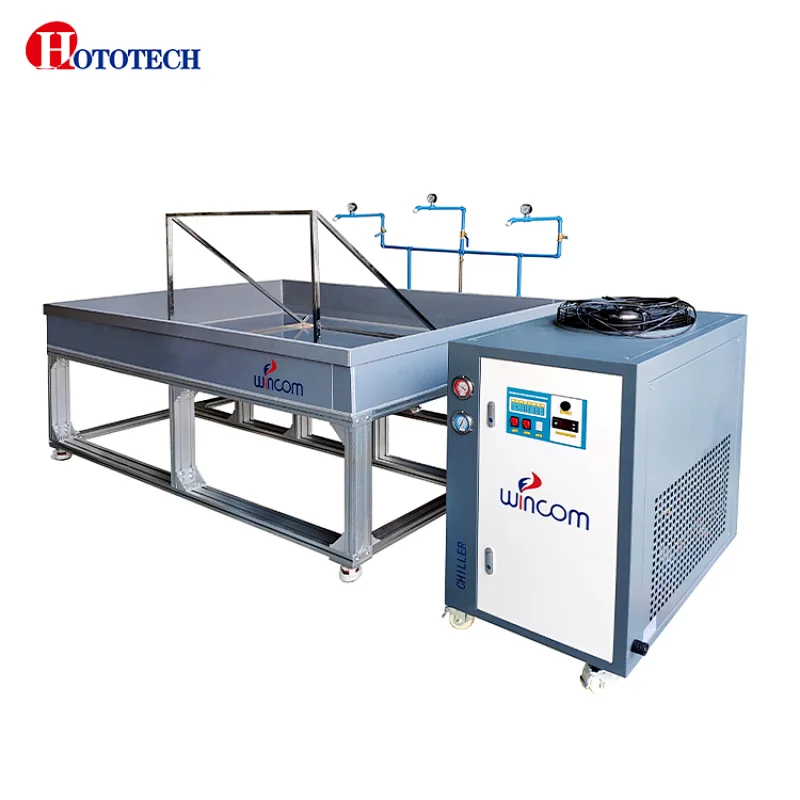

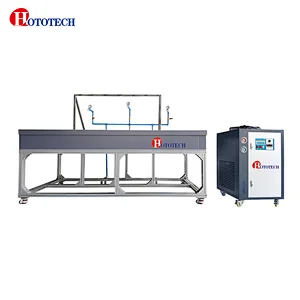

HTPV-07 Wet leakage current test
HTPV-07
0.00~0.00
Standard According to IEC61215 & IEC61730 testing standard requirement
Purpose to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion, a ground fault or a safety hazard
