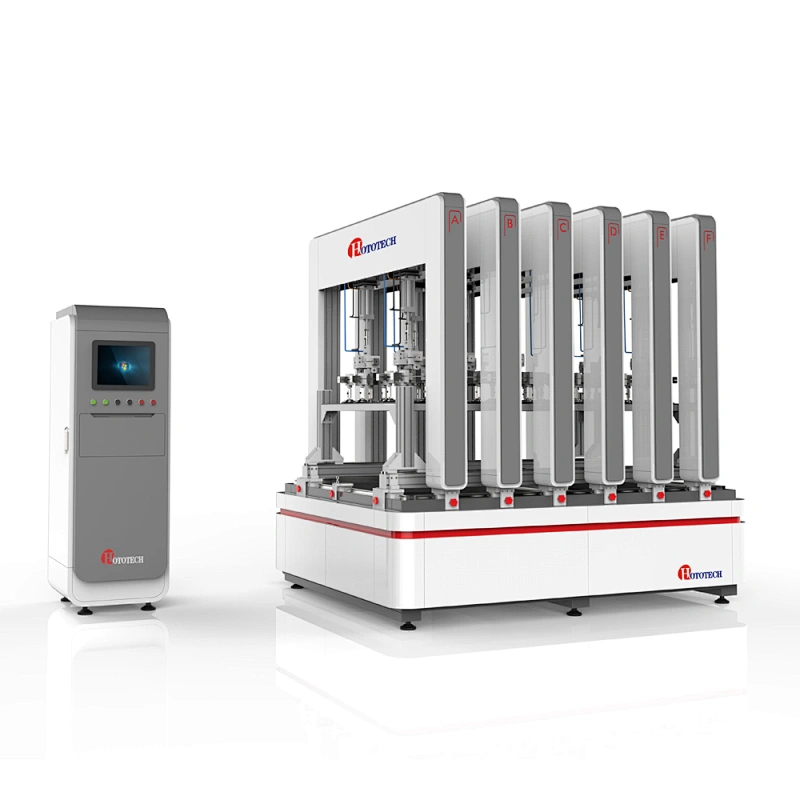

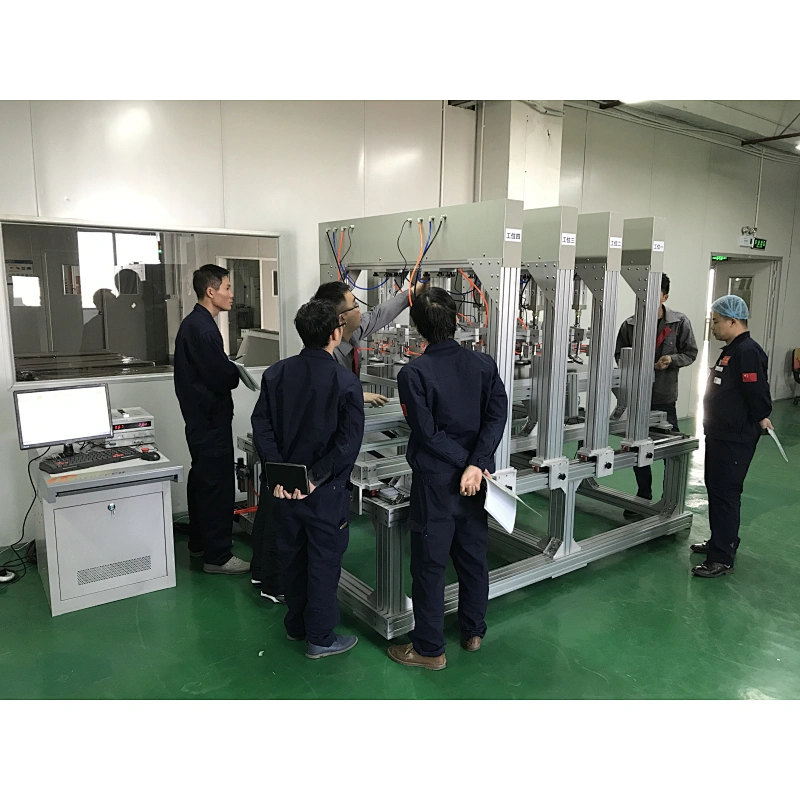

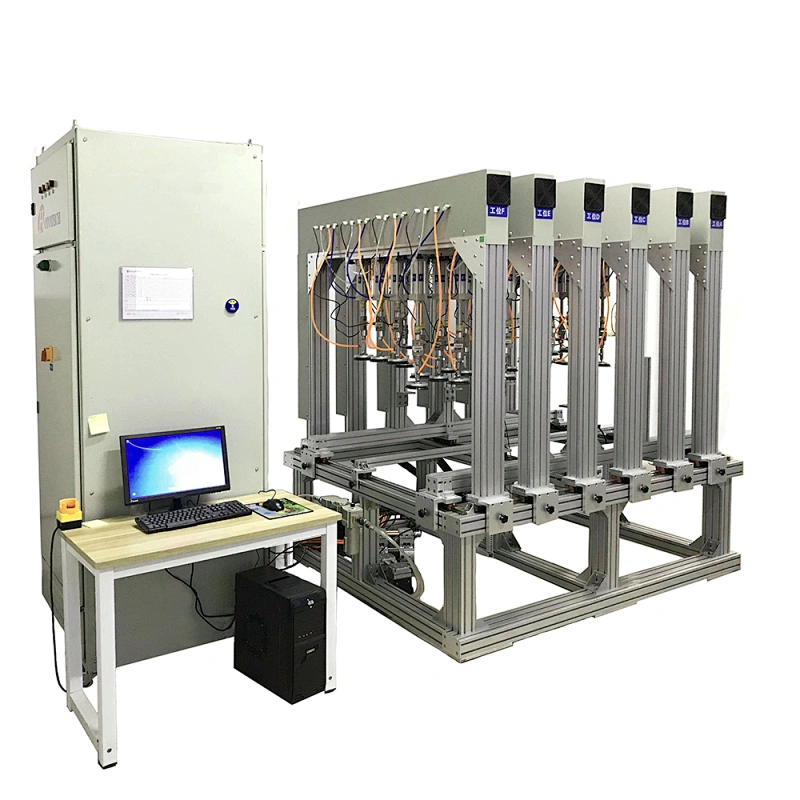

HTPV-08 Static Mechanical Load Test Overall Photo Display of Testing Machine

Model NO.
HTPV-08
Minimum order quantity:
1 set
Quantity:
Testing standard
Its confIrm IEC61215 & IEC61730 testing standard requirement

Purpose
This test is to determine the ability of the module to withstand wind, snow, static or ice loads


The Mainly Feature
1The Testing machine’s raw material: Aluminum profile structure  (firm and Antirust)
2Can satisfy 2015mm× 996mm solar panel size, ( It’s can adjustable, and suit for different solar panel’s size testing)
3Pneumatic and force value feedback ways: low friction force cylinder, tensile pressure
Sensor ( the accurate:0.1N)
4The cylinder : 10 PCS, the telescopic stroke:125mm

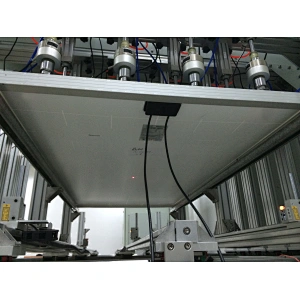

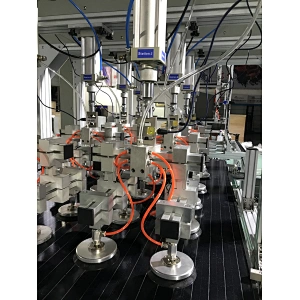

5Sucker40 PCSThe diameter:120mm ( 1 cylinder attached 4 suckers),Between the sucker
Center to sucker center distance ≤ 200mm, sucker with the rotation function, the rotation angle≥15
6Control waysComputer control
7The testing machine can save the testing result and export to report

Software operate system feature:


  1. Computer operate and control software by HOTOTECH researched and development,easy operate and test data stable
  2. The software support Chinese and English , with the Switching function
  3. Software real-time display pressure, deformation , testing time, cycle times and current electricity continuity
  4. Software real-time drawing pressure and deformation curve
  5. Software real-time display each cylinder’s force value and drawing the force value curve
  6. Testing data real-time storage, query & print
  7. The Testing data can export WordExcel, PDFJPG format
  8. The software with the fault warning function
