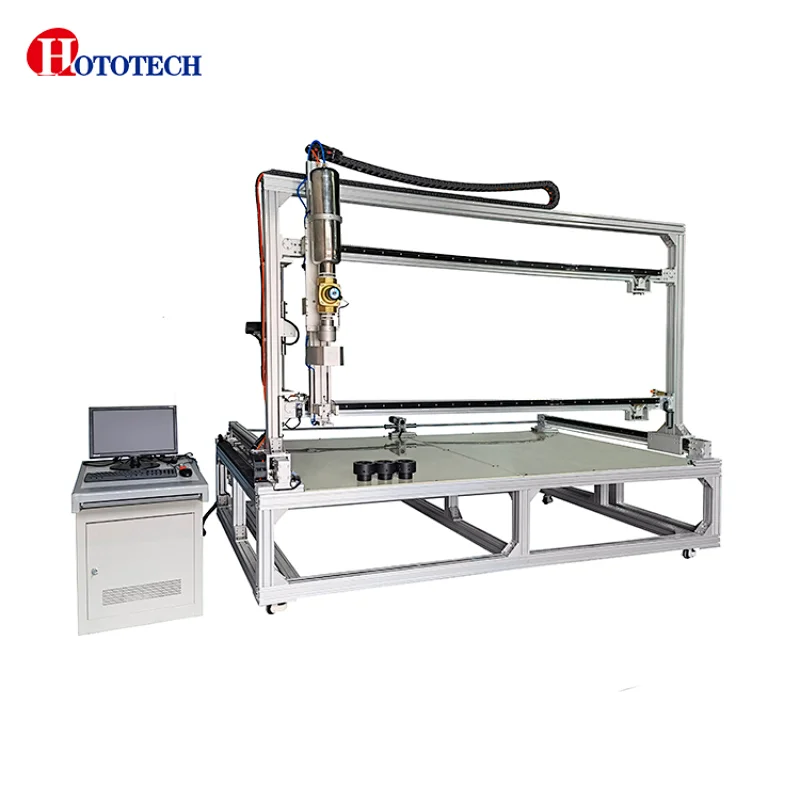

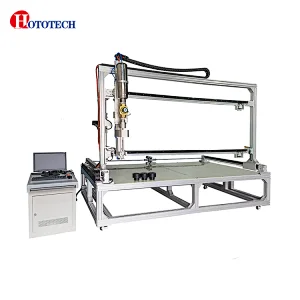

- The Mainly Feature
- The testing machine’s raw material: Aluminum profile structure ( firm and Antirust)
- Can satisfy 2015mm*996mm solar panel size ( It’s can adjustable, and suit for different solar panel size testing)

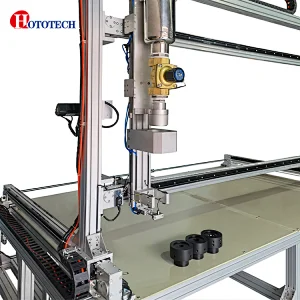

- Launch device
- - power source is air compressor
- Air pressure:6-8 bar
- Ice ball single filled by Manual

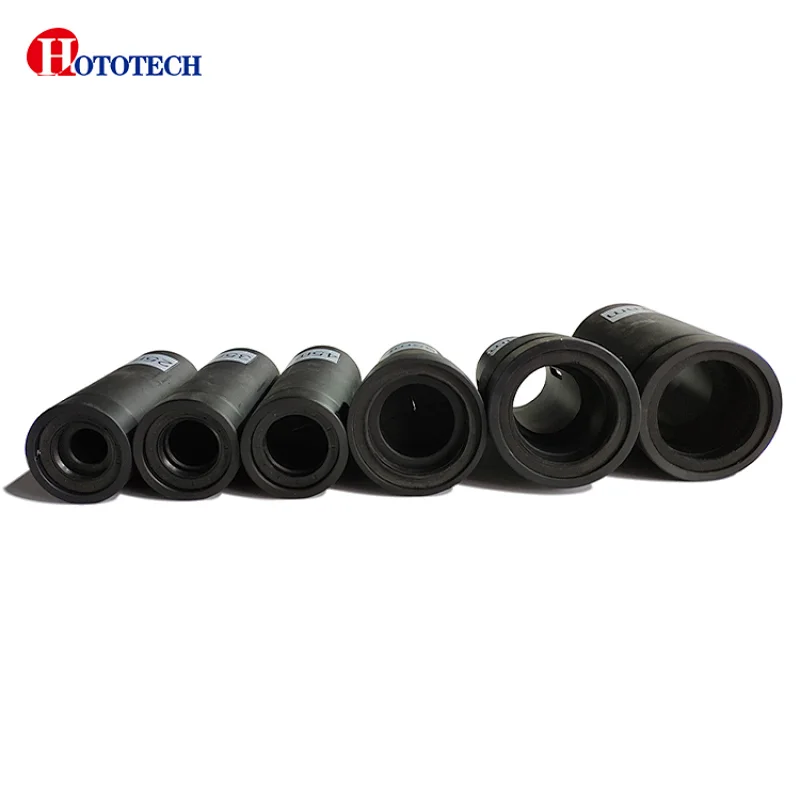

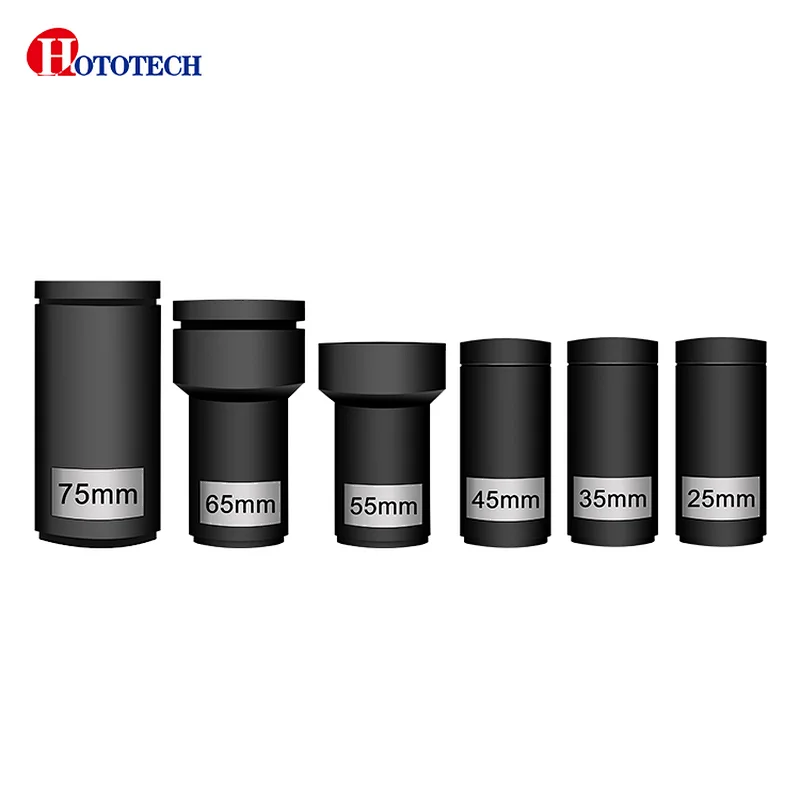

- The barrel length approx 940mm
- The barrel can change - The guide ways is high quality import guide rail
- Driving ways adopt import servo motor+synchronous wheel
Moving locating device:
- X shaft move distance approx: 2.1m
- Y shat move distance approx: 1.0m
- Locating accurate:≤1mm
- Impact area:2015mm*996mm (adjustable, its can suit for different size solar panel testing)
- Locating control ways is PC control and automatic locating

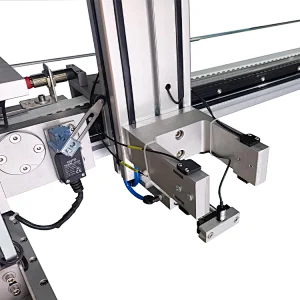

Testing velocity system and theory:- The ice ball through the infrared test velocity sensor, meanwhile catch infrared by breaking time T, according to the V-S/T calculation ice ball flight velocity
- Infrared test speed sensor accurate:+/-5%
- The speed catch range:0-50 m/ s
- Ice ball diameter, mass and speed:
Diameter (mm) Mass (g) Speed (m/s) Diameter(mm) Mass (g) Speed (m/s) 25 7.53<5% 23.0+/-5% 35 20.7<5% 27.2+/-5% 45 43.9<5% 30.7+/-5% 55 80.2<5% 33.9+/-5% 65 132.0<5% 36.7+/-5% 75 203.0<5% 39.5+/-5%
Ice ball mould specifications: - 1 mould with 6 ice ball, each ice ball size with 2 set mould
- The mould material: Special materials and the ice ball easy take off from the mould
- The mould process: CNC processing

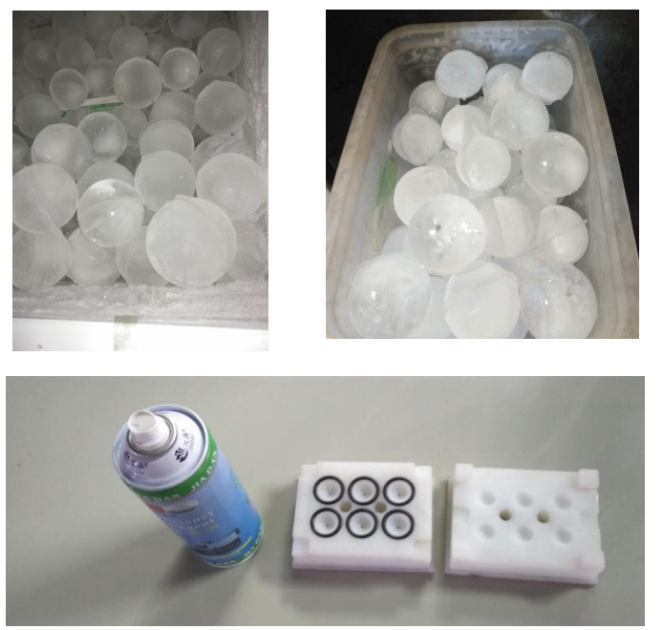

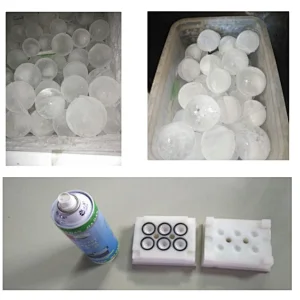

The ice ball and mould figures display
