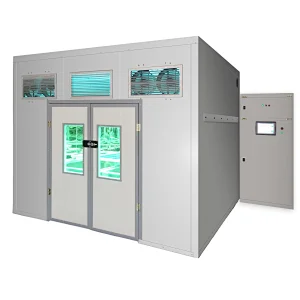

HTPV-15 UV Preconditioning Testing Chamber Outer Appearance Display

HTPV-15 UV Preconditioning Testing Chamber Outer Appearance Display

Model NO.: HTPV-15
Delivery:: FOB
Minimum order quantity:: 1 set
Supply Ability:: 100 set / Month
Country of Origin:: ShenZhen YanTian
Stock Time:: 30 Days

Quantity:

Product Description
Basic Information

Product Advantage

Lamp source and lamp brand: Germany OSRAM, this is important and Core parts and from the

best supplier OSRAM in the Globe market, The life is longer than fluorescent lamp, High light efficiency and reliable performance, It can greatly shorten the test time and improve the work efficiency.

Use lamp source small quantity, can save the costs , Irradiance area 2015mm×996mm, just need 4 sets lamp, Testing sample quantity 1 PCS
The lamp have long time life, the time about 3000 hours, warranty 1000 hours, Low cost of

consumables

Warranty time : 1 year, at the same time we will offer the forever technical support for the customer

The Mainly Feature

The chamber material: completely isolated ultraviolet rays, tightness,high quality material with

Good Thermal Insulation, environmental protection, easy to process and install

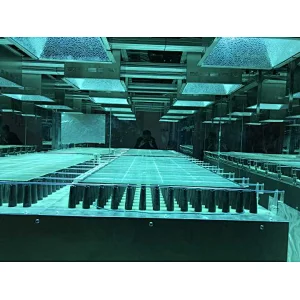

Double door design , inner chamber with 2 layer, the upper layer is hang light source system and

heat dissipation system, the down layer is testing sample placed platform

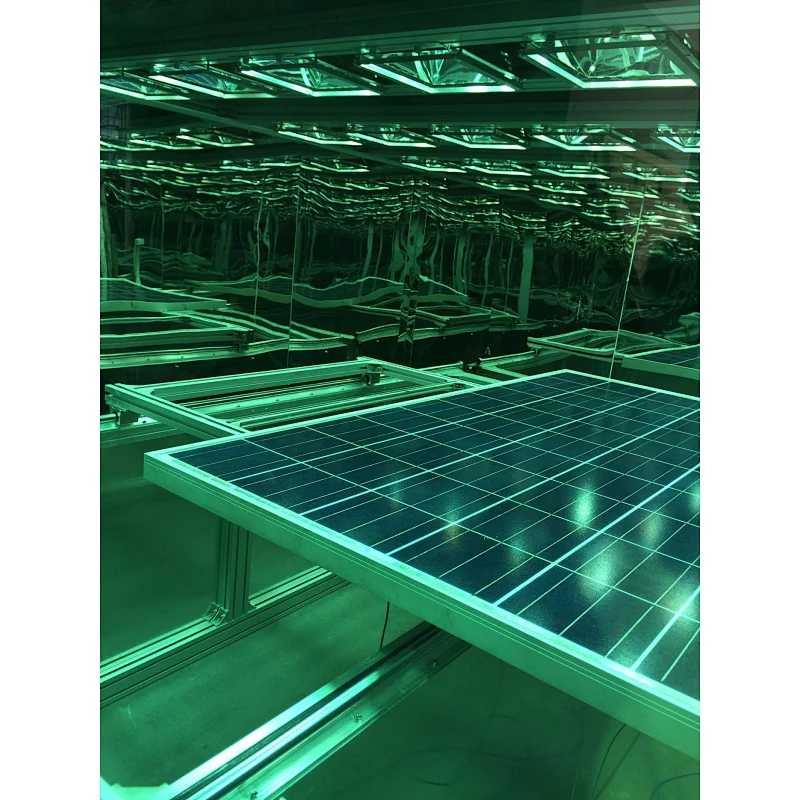

Light source transverse hoisting, pv module testing surface vertical with lamp source, Scientific

design maximizes the use of light source efficiency and intensity, and specially customized reflector lampshade maximizes uniformity.

The Professional UVA, UVB optical fiber probe makes data acquisition more accurate
Industrial touch screen operate and real-time monitor display UVA, UVB , when arrived the set

value ,it’s will automatic stop

Wind cooling temperature control system, temperature sensor accurate control testing sample

surface temperature during the testing procedure, and display figures on the touch screen , promise the testing temperature stable at 60℃±5℃

Industrial Touch Screen + PLC Programmable Controller for Automatic Control of Temperature,

Irradiation, Irradiation Quantity and Test Time

The machine with save testing result, temperature, irradiance curve function, and export to the

report

The Mainly Specifications

Irradiance area:2015mm×996mm, can testing 1 PCS pv module
The light source brand: OSRAM
Light source quantity: 4 sets
Light Source life time about: 3000 hours
UVA wavelength: 320nm～400nm）、UVB（280nm～320nm）
The Single lamp UVA and UVA relative energy rate: UVA occupy total energy about 3%~10%
Irradiance strength: the wavelength at 280nm~400nm, the irradiance strength about is

100W/m²～250W/m²

Irradiance uniformity: better than ±15％
PV Module surface temperature:60℃±5℃
Temperature resolution:0.1℃
Ozone: almost no ozone is produced
Light ways : upper
Electricity:380V50HZ
Weight: about 2000kg

Irradiance and Irradiance quantity explanation
Perform IEC61215-2:2016, Light source distribution 280nm~320nm occupy above 3~10% of
280~385nm Irradiance strength

Safety Function
Safety protection alarm device, when the chamber inner temperature arrived the protection value after, the machine will automatic close the power, start running wind cooling system with the alarm voice
